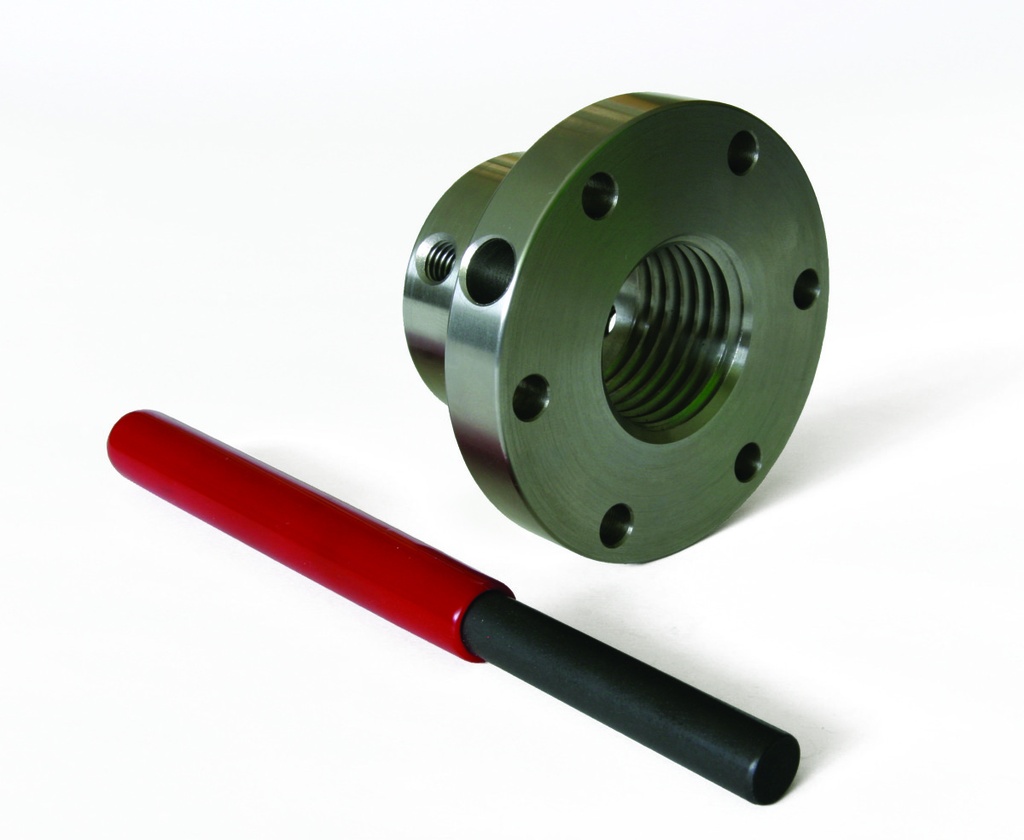

faceplate 7,5 cm stainless steel
The oneway clamping plates are made of cast iron, stainless steel or carbon steel. The clamping plates are very strong. By default, the chucks are all M33 x 3. But there are also other threads available. Please indicate this clearly when ordering. A different thread from the table below will cost nothing extra. There are 5 sizes available:
- 8 cm (carbon steel and RVS)
- 10 cm (carbon steel)
- 15 cm (cast iron)
- 20 cm (cast iron)
- 25 cm (cast iron)
Table 1-wire for 8 cm clamping plates
| Measures |
Art No. Stainless)
|
Art No. Carbon)
|
|
|
||
| M33 x 3.5 |
2391-355SS
|
2391-355CR
|
| 1-8 TPI LH/RH |
2391-327ss
|
2391-327CR
|
| 1 ¼-8 TPI |
2391-322SS
|
2391-322CR
|
| ¾-16 TPI |
2391-336SS
|
2391-336CR
|
| 5/8-Plain |
2391-360SS
|
2391-360CR
|
Table 2-wire for 10 cm-20 cm clamping plates
| Measures |
10 cm 9 Holes
|
15 cm 24 holes
|
20 cm 30 holes
|
|
|
|||
| ¾ "-16 TPI |
0436
|
0636
|
-
|
| 1 "-8 TPI |
0427
|
0627
|
0827
|
| 1 1/8 "-8 TPI LH |
0425
|
-
|
-
|
| 1 ¼ "-8 TPI |
0422
|
0622
|
0822
|
| 1 ½ "-8 TPI |
0402
|
0602
|
0802
|
| M33 x 3.5 |
0455
|
0655
|
0855
|
No Specifications
